| Odour trap | 58 mm |
| Flow rate | 57 l/min |
| Thermal resistance | 95 ˚C |
| Hose connector | 17 – 23 mm |
Product details
- For wash-basin
Application
- Connection to waste pipe Ø32 mm
- With connector for washing machine or dishwasher
- Material: polypropylene
Specifications
-
Norms
EN 274
| Quantity (package) | 20 pcs |
| Quantity (pallet) | 560 pcs |
| Dimensions (piece) | 270×90×190 mm |
| Dimensions (package) | 590×240×390 mm |
| Weight (piece) | 0,2817 kg |
| Weight (package) | 5,634 kg |
| Weight (pallet) | 177,752 kg |
- Sink trap body with connector
- PVC plug
- Stainless steel outlet grid
- Plastic rosette
Scope of supply

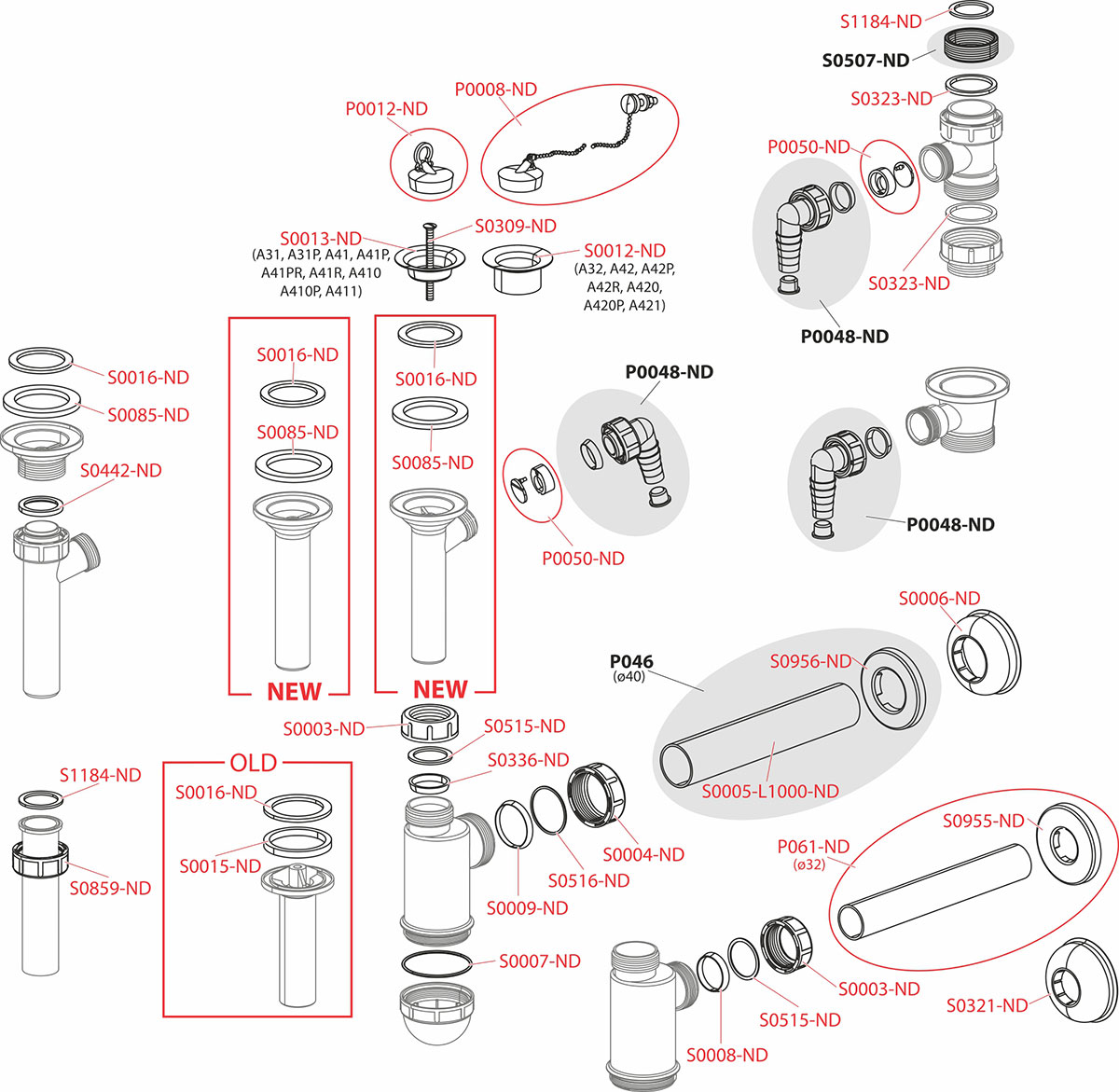

| P0050-ND | Washer + flap |
| P061-ND | Pipe DN32 with rosette |
| S0006-ND | Rosette DN40 |
| S0016-ND | Sealing 60×45.5×2 |
| S0309-ND | Screw M6×80 stainless steel |
| S0321-ND | Rosette DN32 |
| S0955-ND | Rosette DN32 |
Downloads
| Product code | EAN | Technical sheet | ||
|---|---|---|---|---|
| A410P | 8595580556112 |  |
