| Odour trap | 58 mm |
| Flow rate | 38 l/min |
| Thermal resistance | 95 ˚C |
Product details

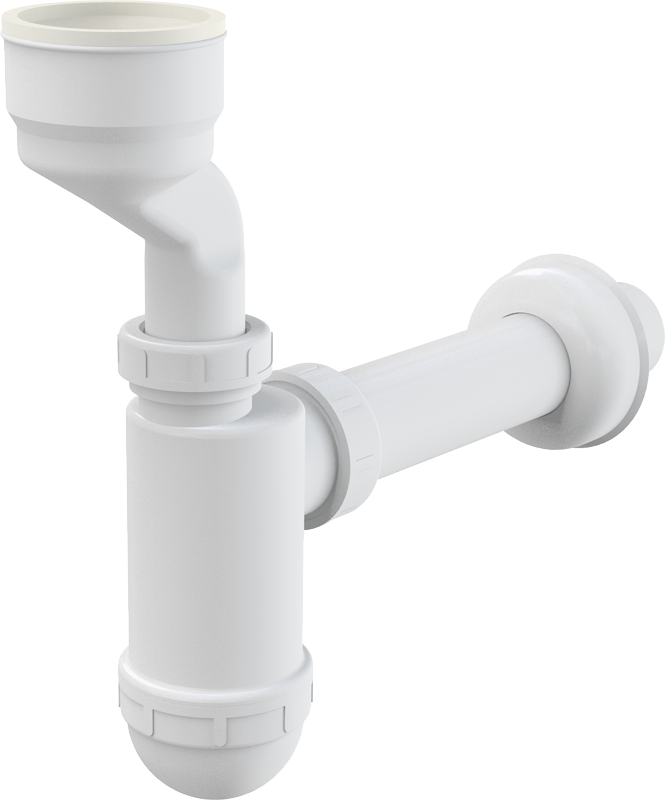

- For urinal with vertical outlet
Application
- Connection to waste pipe Ø40 mm
- Material: polypropylene
Specifications
-
Norms
EN 274
| Quantity (package) | 25 pcs |
| Quantity (pallet) | 700 pcs |
| Dimensions (piece) | 260×140×80 mm |
| Dimensions (package) | 590×240×390 mm |
| Weight (piece) | 0,2639 kg |
| Weight (package) | 6,5975 kg |
| Weight (pallet) | 204,73 kg |
- Waste and trap body
- Wrapping seal
- Plastic rosette
Scope of supply
| S0003-ND | Nut G1 1\/4" |
| S0004-ND | Nut G1 1\/2" |
| S0008-ND | Conical sealing 36×31,5×5 |
| S0009-ND | Conical sealing 44×39×5 |
| S0321-ND | Rosette DN32 |
| S0336-ND | Conical sealings white |
| S0380-ND | Cuff of urinal trap |
| S0515-ND | Friction ring DN32 |
| S0516-ND | Friction ring DN40 |
| S0956-ND | Rosette DN40 |
Downloads
| Product code | EAN | Technical sheet | ||
|---|---|---|---|---|
| A45A | 8594045935400 |  |
