Flush plate for pre-wall installation systems, alunox-matt

MOON

Technical parameters

Operating force< 20 N

    Application

  • For pre-wall installation systems and concealed WC cisterns

    Specifications

  • The mechanism is fully integrated into the wall
  • The flush plate only slightly protrudes above the tiles
  • Double-acting mechanical flushing
  • Compatible for all pre-wall installation systems and cisterns for building into solid walls Alca
  • Maintenance with common detergents used in the household for plumbing fixtures and bathroom accessories
  • Resistant to UV rays and external influences
  • Precise workmanship with laser technology
  • Surface finish: alunox-mat, Anti-fingerprint with surface treatment that eliminates fingerprint smudges
  • Material: anodized aluminum, stainless steel
Quantity (package) 10 pcs
Quantity (pallet) 280 pcs

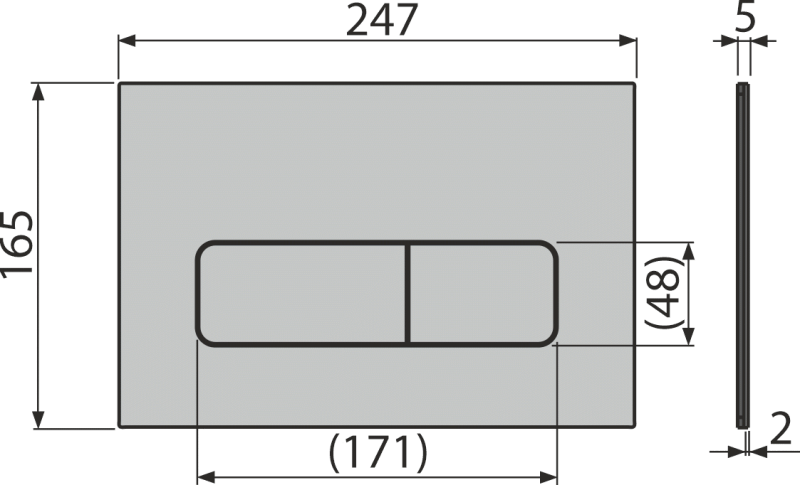

Dimensions (piece) 255×85×175 mm
Dimensions (package) 255×85×175 mm
Weight (piece) 0,7562 kg
Weight (package) 7,562 kg
Weight (pallet) 231,736 kg

    Scope of supply

  • Flush plate
  • Fixing frame of the flush plate
  • Threaded frame clamp 2 pcs
  • Adapter kit for the control mechanism of the flush valve
P204-ND Flush plate frame FLAT with tilting mechanism
File Name Size Action
icon MOON - Template for correct flush plate setup.pdf 232.08 kB Download link icon
icon MOON - CAD drawing.dwg 122.96 kB Download link icon
icon MOON - CAD drawing.dxf 241.53 kB Download link icon
icon MOON - Installation instructions.pdf 2.02 MB Download link icon
Product codeEANTechnical sheet
MOON8595580577476Technický list
