Floor drain 105×105/50/75 mm side outlet, stainless steel grid, stainless steel flange and collar-2nd level insulation, wet and dry odour trap
APV3344
Product details
| The flow of the inlet grid (wet odour trap) | 46 l/min |
| The flow of the inlet grid (dry odour trap) | 62 l/min |
| Wet odour trap | 51 mm |
| Resistance of odour trap against the pressure | 480 Pa |
| Load class K3 | 300 kg |
| Waste pipe diameter | 75/50 mm |
| Total installation height | 104 – 174 mm |
- For the interior, where will be frequent use associated with the regular water runoff into the floor drain (bathrooms) – wet odour trap
- For outdoor spaces where there may be a drop in temperature below freezing – dry odour trap
- For wheelchair access
Application
- Stainless steel grid 102×102×5 mm
- Height adjustable throat 25–95 mm
- Wide insulation collar for connection to waterproofing construction
- Collar-2nd level of insulation for connecting to waterproofing layer beneath the pavement
- Stainless steel collar for firm attachment of waterproofing membrane or building waterproofing fabric
- Side connection to waste Ø75/50 mm
- Mechanically cleanable trap up to the waste pipe
- Optional use dry or wet odour traps
- Odour traps prevent the penetration of odours from the sewer
- Compatibility with floor drains parts including wet, dry and combined odour trap SMART
- Material: polypropylene resistant to mechanical, chemical and thermal damage
- Material: stainless steel AISI 304, DIN 1.4301
Specifications
-
Norms
EN 1253
| Quantity (package) | 8 pcs |
| Quantity (pallet) | 128 pcs |
| Dimensions (piece) | 355×135×235 mm |
| Dimensions (package) | 560×380×475 mm |
| Weight (piece) | 1,2452 kg |
| Weight (package) | 9,9616 kg |
| Weight (pallet) | 179,3856 kg |
- Drain body Ø50/75 mm, side outlet
- Floor drain throat 105×105 mm
- Stainless steel grid
- Wet odour trap
- Dry odour trap
- Stainless steel flange + assembly set
- Collar-2nd level of insulation inner Ø105 mm
- Seal kit

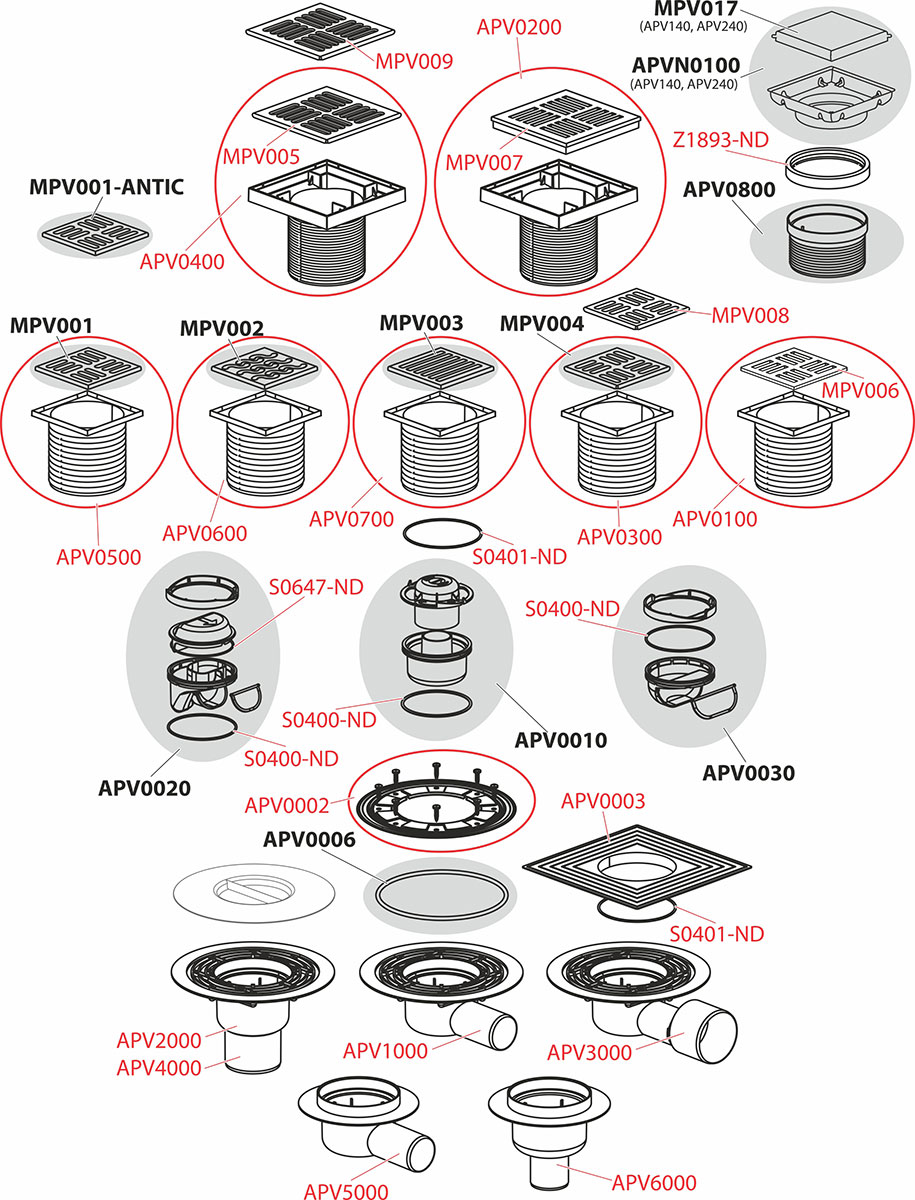

Scope of supply
| APV0002 | Stainless steel flange incl. screws |
| APV0003 | Collar-2nd level insulation DN105 |
| APV0300 | Drain throat, grid 105×105 mm steel |
| MPV005 | Grid 143×143 mm stainless steel |
| MPV006 | Grid 102×102 mm gray |
| MPV008 | Grid 102×102 mm stainless steel AISI 316L |
| MPV009 | Grid 143×143 mm stainless steel AISI 316L |
| S0400-ND | O-ring for drain throat |
| S0401-ND | O-ring for 2-nd level insulation |
